Power (kW): Min 0.31 – Max 43.1
Case design: monoblock

01. Helical gearboxes RXP-700 series

Immediately after the introduction of the RX 800 series gearboxes, the RXP 700 series helical gearboxes have become a natural complement to the lower torque range and have been used as the market benchmark for over 40 years.

A robust die-cast housing with multiple mounting positions, a large selection of gear ratios, and a variety of accessories and options make them a competitive and reliable product.

Gear ratio i: Min 3.3 – Max 334.9
Output torque (Nm): Min 200 – Max 1500

02. RXP-800 series helical gearboxes

The new series of universal helical gearboxes sets a new standard in the market, the existing sizes cover a wide range of tasks and also provide high reliability in harsh operating conditions.

The RX 800 series gearboxes are the efficient answer to the requirements of medium and heavy industry

Gear ratio i: Min 1.11 – Max 801

Output torque (Nm): Min 1400 – Max 692000
Power (kW): Min 0.72 – Max 9308

Power (kW): Min 0.19 – Max 22.89
Case design: monoblock

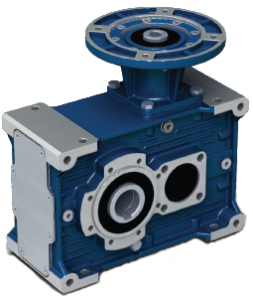

03. Bevel-helical gearboxes RXO-700, RXV-700 series

The RX 700 series helical-helical gearboxes are the smallest in the RX series. Since the introduction of the RX 800 series gearboxes to the market, the RX 700 series bevel and helical gearboxes have become a natural complement to the lower torque range and have been used as a benchmark in the market for over 40 years.

A robust die-cast housing with multiple mounting positions, a large selection of gear ratios, and many accessories and options make these gearboxes a competitive and reliable product.

Gear ratio i: Min 9.5 – Max 502.2
Output torque (Nm): Min 230 – Max 2100

04. Bevel-helical gearboxes RXO-800, RXV-800 series

The new series of universal bevel gearboxes, RXO-V-800, has set a new standard in the market with its optimized dimensions, torque transmission, high reliability in industrial applications and harsh operating conditions.

The RXO-V-800 is an efficient answer to the requirements of the power industry, as well as medium and heavy industry.

Gear ratio i: Min 4.39 – Max 4839
Output torque (Nm): Min 1100 – Max 692000

Power (kW): Min 0.12 – Max 2312
Case design: dismountable (with a plane of the connector)

RXP-EST 800

Gear ratio i: Min 4.44 – Max 1/142
Output torque (Nm): Min 2900 – Max 86800
Power (kW): Min 4,1 – Max 2402
Thrust bearing (code): Min 29415E – Max 29452E
Case design: dismountable (with a plane of the connector)

05. Reducers for extruders series RXP-EST-700, RXP-EST-800

This new series of extruder drive gearboxes has strengthened our company’s position as the market leader in transferable torque.
RXP / EST is an innovative series of gearboxes with torque arm and flange connection.

In this way, we can achieve the highest integration between drive and extruder, leading to lowest cost and highest reliability.
The RXP-EST series allows you to work with extruder screw diameters from 30mm to 300mm to (from 220mm on request).
As this mechanical engineering sector is developing rapidly, our company
constantly researching and proposing new solutions for clients.

RXP-EST 700

Gear ratio i: Min 8, 7 – Max 58, 1
Output torque (Nm): Min 860 – Max 4872
Power (kW): Min 3.0 – Max 108.1
Thrust bearing (code): 29412E – Max 29415E
Case design: dismountable (with the plane of the connector)

06. Reducers for extruders series RXO-EST-700, RXV-EST-700, RXO-EST-800, RXV-EST-800

This new series of extruder drive gearboxes has strengthened our company’s position as the market leader in transferable torque.
RXO, RXV / EST is an innovative series of gearboxes with torque arm and flange connection.
In this way, we can achieve the highest integration between drive and extruder, leading to lowest cost and highest reliability.

The RXO-EST, RXV-EST series allows working with extruder screw diameters from 30mm to 300mm to (from 220mm on request).
As this sector of mechanical engineering is developing rapidly, our company constantly conducts research and offers new solutions for customers.



RXO-V-EST 700

Gear ratio i: Min 5.2 – Max 75.4
Output torque (Nm): Min 458 – Max 4600
Power (kW): Min 2.2 – Max 151.6
Thrust bearing (code): 29412E – Max 29415E
Case design: dismountable (with the plane of the connector)

RXO-V-EST 800

Gear ratio i: Min 19.1 – Max 124
Output torque (Nm): Min 3200 – Max 86800
Power (kW): Min 4.8 – Max 661
Thrust bearing (code): Min 29415E – Max 29452E
Case design: dismountable (with a plane of the connector)

Gear ratio i: Min 31.2 – Max 568
Output torque (Nm): Min 2700 – Max 177000
Power (kW): Min 1.1 – Max 613
Center distance (mm): Min 305 – Max 1090
Case design: dismountable (with a plane of the connector)

07. Helical gearboxes of the RXP-E series for industrial hoists

The RXP-E hoist gearbox series originates from the RXP series, which was fitted with a secondary planetary worm gearbox.
These gearboxes are available in a variety of input and output shaft sizes to meet the requirements of heavily loaded hoists, providing an optimal performance / weight ratio.

The planetary gearbox has an additional stage with an input shaft, which is located between the motor and the output stages of the gearbox, in order to obtain two different speeds on the output shaft.
Changing the gear ratio of the planetary gear gives
the ability to obtain different output speeds.
